1. Fundamental Capacitor Model

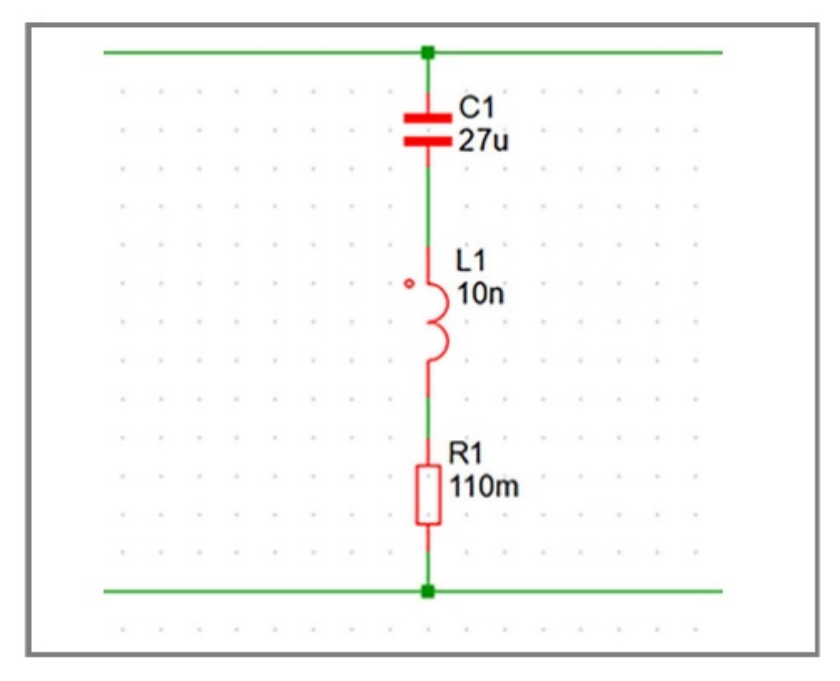

A practical capacitor can be accurately characterized by a three-element model:

• C1: Ideal capacitance (energy storage component)

• R1: Equivalent Series Resistance (ESR, from electrodes and leads)

• L1: Equivalent Series Inductance (ESL, caused by internal structure and leads)

While this first-order model doesn’t fully capture the frequency-dependent nonlinearity of dielectric materials, it suffices for most filter design purposes. Notably, electrolytic capacitors exhibit significantly higher ESR than ceramic or film capacitors—a critical factor in their applications.

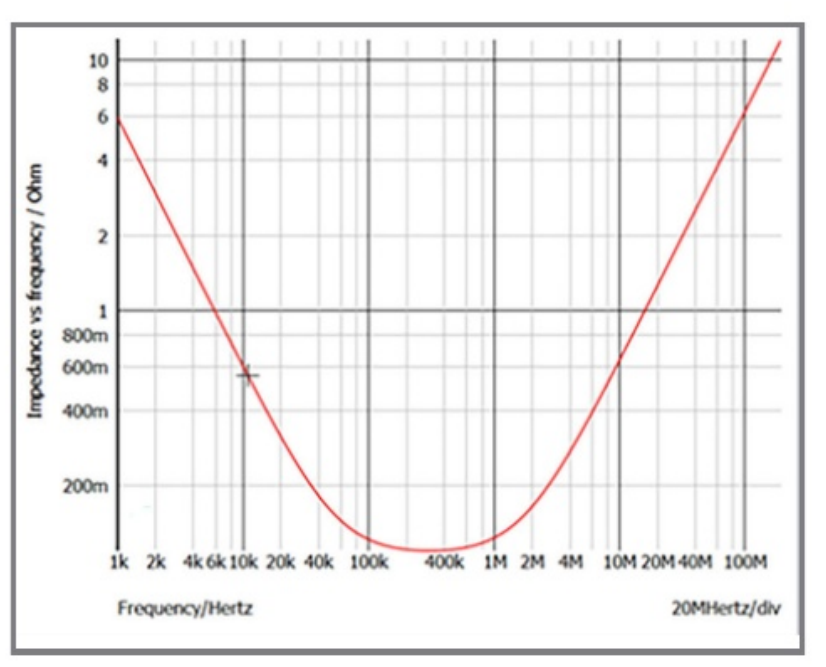

2. Impedance-Frequency Characteristics of Electrolytic Capacitors

The impedance curve reveals three key operational regions:

1. Capacitive Region (Low Frequency):

   • Impedance decreases with frequency (-20dB/decade slope)

   • Ideal for low-frequency noise suppression (kHz-MHz range)

2. Self-Resonant Point (~400kHz in this example):

   • Capacitive and inductive reactances cancel out

   • Minimum impedance occurs, dominated by ESR

3. Inductive Region (High Frequency):

   • ESL dominates, behaving like an inductor

   • Loses filtering effectiveness beyond this point

3. Engineering Guidelines

1. Electrolytic Capacitor Selection:

   • Prioritize for low-frequency decoupling (e.g., power input stages)

   • Always pair with small ceramic capacitors for high-frequency coverage

   • • Verify self-resonant frequency with impedance analyzers

       ESR increases dramatically at elevated temperatures




2. Verify self-resonant frequency with impedance analyzers

   1. ESR increases dramatically at elevated temperatures
