Working Principle of Magnetic Rings

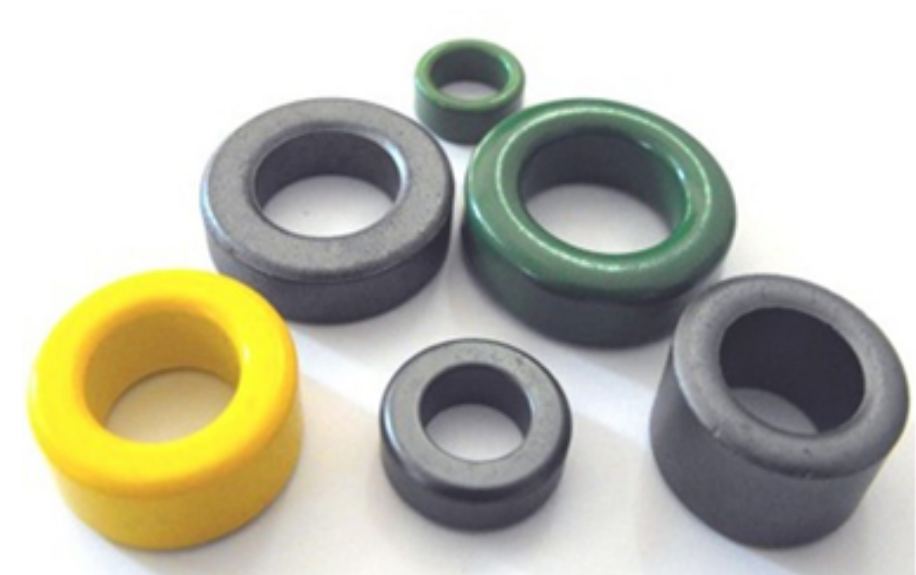

A magnetic ring is a toroidal magnetic core made of magnetic materials such as ferrite or neodymium iron boron. It serves as a magnetic component used to suppress electromagnetic interference and is commonly employed in various electronic devices.

Typically crafted from magnetic materials like ferrite and neodymium iron boron, magnetic rings offer advantages such as high magnetic permeability, high saturation magnetic flux density, and low cost.

1. Principle of Energy Transfer in Magnetic Rings

The working principle of magnetic rings can be explained from the perspectives of electromagnetic induction and electromagnetic energy transfer. First, when an electric current passes through a coil wound around the magnetic ring, a magnetic field is generated around the ring. The magnitude and direction of this magnetic field are determined by Ampère’s circuital law, meaning the strength of the magnetic field is proportional to the current in the coil.

When the current in the coil changes, the magnetic field also changes. According to Faraday’s law of electromagnetic induction, this change in the magnetic field induces an electromotive force (EMF) in the magnetic ring. The magnitude of this induced EMF depends on the rate of change of the magnetic field—the faster the magnetic field changes, the greater the induced EMF.

The working principle of magnetic rings relies on the interaction between the changing magnetic field and the electric current to achieve electromagnetic induction and energy transfer. This mechanism holds significant application value in the field of electronics.

2. Principle of Noise Suppression by Magnetic Rings

Magnetic rings exhibit different impedance characteristics at different frequencies. Generally, their impedance is very low at low frequencies. However, as the signal frequency increases, the impedance of the magnetic ring becomes significantly larger. This causes the energy of high-frequency noise interference to be converted into heat and dissipated as it passes through the magnetic material, thereby blocking the transmission of high-frequency noise interference.
