FEATURES
PCB filters are mostly used in network system and electronic data processing.
PCB line EMI filters are small, compact through hole, and help reduce assembly time. Mostly used in general power supply, network system and low-leakage medical PCB assembly applications.
DIP | High performance

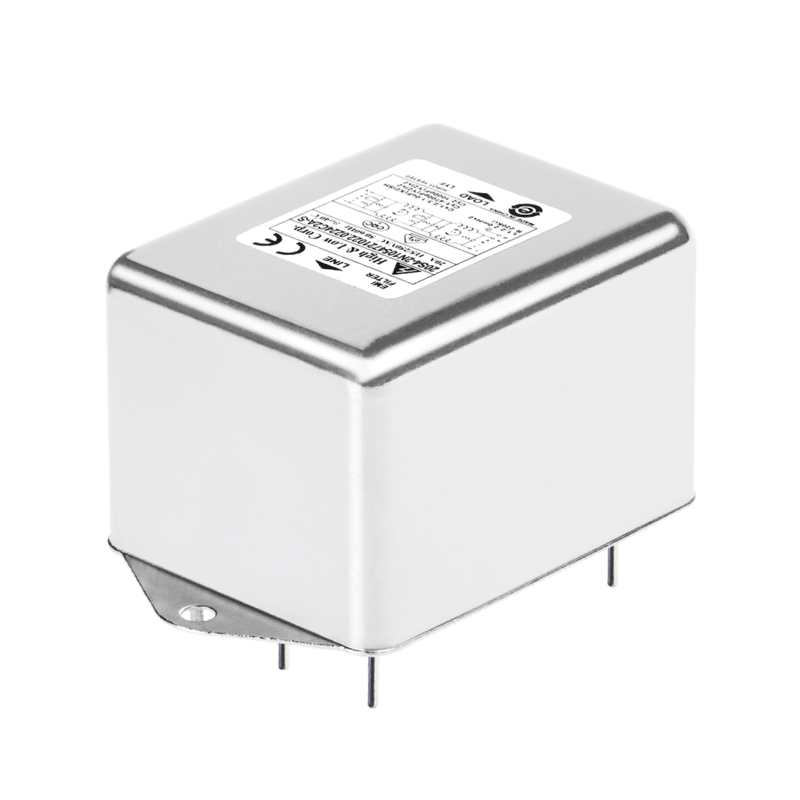

42DC1S01 | High performance PCB filters
FEATURES
• Standard conducted attenuation performance
• Current rating 1A~20A
• DIP PCB filter
• With good HF coupling to the equipment housing
• Two-stage circuit design
• International protection code: IP40
APPLICATIONS
• Surveillance system
• Test and measurement equipment
• Rack mounting equipment
• EDP and office equipment
• IPC
FEATURES
• Standard conducted attenuation performance
• Current rating 1A~20A
• DIP PCB filter
• With good HF coupling to the equipment housing
• Two-stage circuit design
• International protection code: IP40
APPLICATIONS
• Surveillance system
• Test and measurement equipment
• Rack mounting equipment
• EDP and office equipment
• IPC
