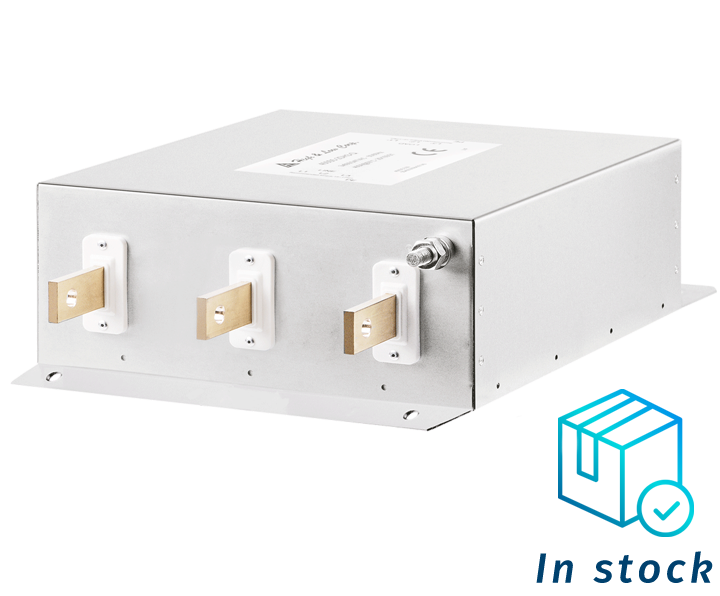

Rating 150~400A | SCB70HQ SCB70HQ series | Three-stage circuit 3 phase EMC filters. Widely used in motor drive

> Back

The 3 phase filters are particularly suitable for the mechanical, automation and power management system.
3 phase filters providing with excellent attenuation performance and high reliability in EMC solutions, are approved for nominal voltages up to 600VAC and rated currents up to 400A, and approved by UL, cUL, ENEC and CQC making them suitable for use in high power systems.
3 phase EMI filters has different mechanical configurations available, with book and flat solutions and with DIN rail mounting in plastic case versions serves to meet different requirements in terms of compactness
.

FEATURES
Excellent conducted attenuation performance
Current rating 150A~400A
Widely used in motor driver
Easy, time-saving installation
Terminals: Copper flat bar

International protection code: IP20

APPLICATIONS
Motor driver
DC/AC inverters
Process control system
Power management system
Robotics
