EMI Filter / Power Line Filter / Power Entry Modules Taiwan Manufacturer | High & Low Corporation

Screw | Waterproof IP65 Waterproof power line filter. Against liquid or mist-air environment

> Back

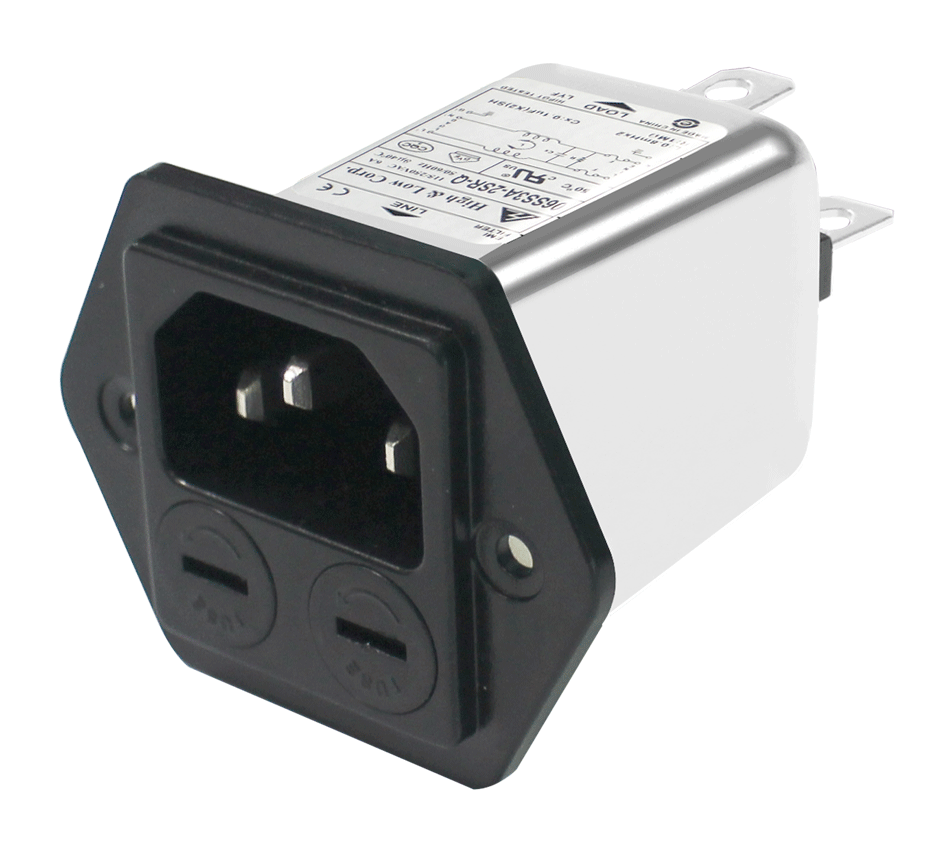

This power entry modules with line filter are rated as water resistant at IP65, with seal protection at the panel opening around the fuse holders, and between the inlet housing and connector pins.

FEATURES
Compact design with waterproof kit included
Current rating 1A~10A
IP65 acc. to IEC 60529 against liquids or mist
With IEC320 AC socket and fuse holder
Screw mount
International protection code: IP40

APPLICATIONS
Medical device (not body-coupled)
Surveillance system
EDP system
Measuring instruments
Infusion pump
